Conference

Meet-Me Conference

So i got request from one of the Top Manager in Jaguar Land Rover to have a way to make a conference in his phone for Daily basis

will conferencing one of the most important things in any Enterprise this days,  it save traveling and timing and get to the point ASAP.
Cisco made the implementation of conference easier with Meet-Me Conference so let me guide what you will do when a user Ask you to get to a meeting

So lets go to the Configuration part

First requirement is to have conference resources available on you router before you can use any conference features i already explain how to configure a Conference Bridge in earlier Blog Media Resource group

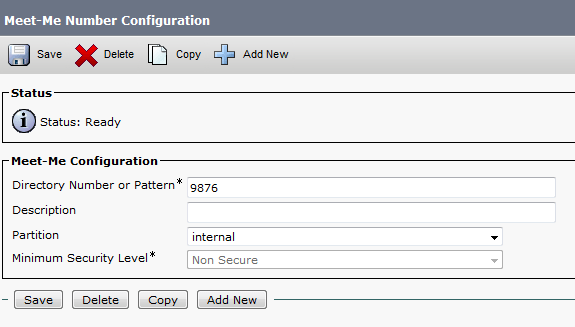

so after that go a head to Call Routing – Meet-Me Number/Pattern – Add New
Choose a unique Number Ex.: 9876 and partition

1
in case you have a custom Softkey template Then Add the Meet-Me Softkey to the Off-Hook state
(another option is to configure the Meet-me as a button)

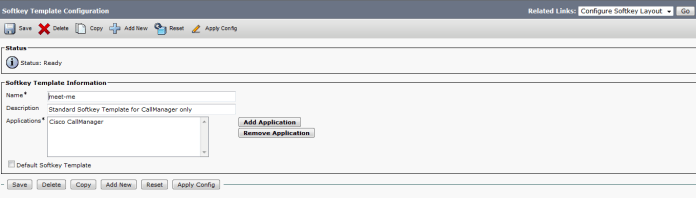

Go to Device – Device Settings – Softkey Template – Add new
i named it (Meet-Me)
2
Then Go to on the right corner to Configure Softkey Layout
then select the state Off-Hook from drop down
and Move the Meet-me to the Selected Softkeys and Save
3
Now go to the phone were  you need to initiate the Meeting and Assign the New Softkey template to it which we configure
4So to Procedure
go to the Phone to initiate the Meeting
while the phone in  off hook state press softkey meet-me and press the Number which we configure earlier 9876 which is Meet-me Directory number
IMG_6689

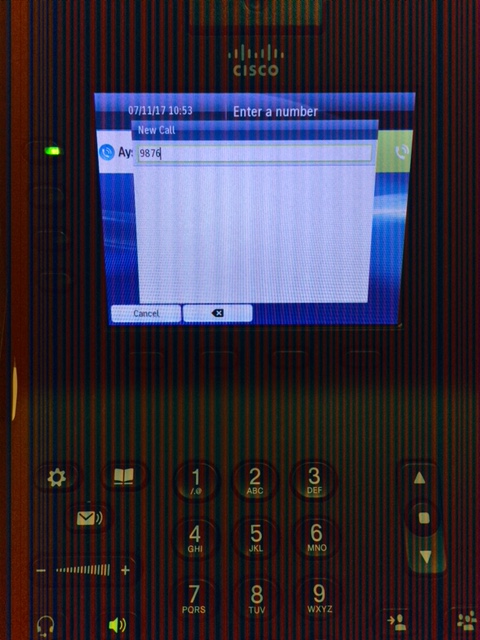

After that put the Meet Me unique number 9876IMG_6690

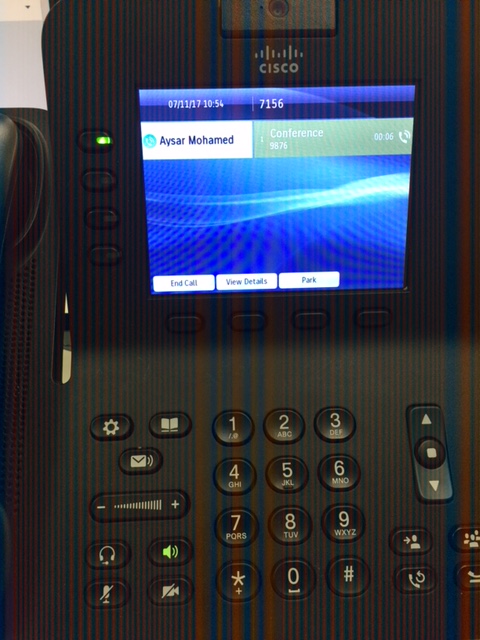

and Like that you enter the Conference RoomIMG_6691
now go the other Parties and Let them just call 9876 simply like they dial any directory number

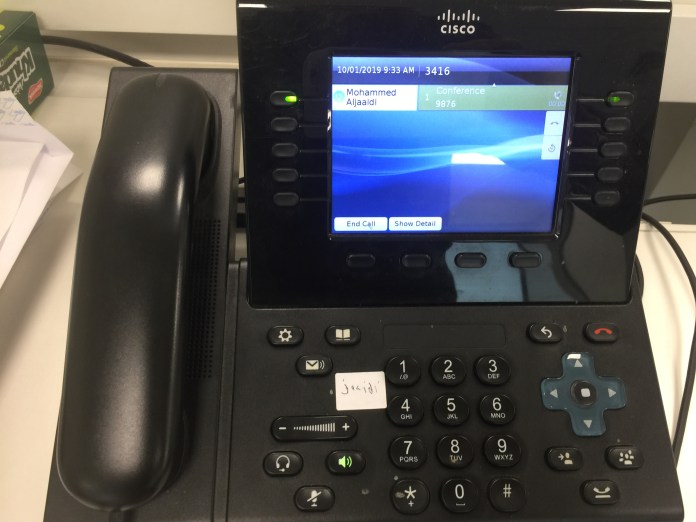

and Walla they Enter to the Conference Room3.JPG

and that’s a wrap

**the meet me can hold as many Parties as your resource can support**
