Installation of CUCM 8.6

yes i reached my second blog thanks god  ;D

the first thing that should be taught in the voice track is how to install the application that you are going to use for the rest of your life in case you didn’t get fired of your job afcors

i will show you here how to install the Cisco Unified Communication Manager 8.6 in a very small step

I have a small lab that contain VMWare  Machine with ESXI 5.0, Cisco Router that act as an NTP Server you could exchange this by your laptob windows timer and a Switch that all this item connected too

Let’s Start

first prepare your VMWare:

  • Operating system – Red Hat Enterprise Linux 5 (32 bit).
  • Processors – at least 2 cores
  • Memory – dedicate at least 4GB. 2 is enough but in a large environment Better to keep your precaution
  • HDD – one partition of 160GB
  • Network Adapter – bridge it directly to the physical one.
  • CD/DVD – I Already upload the Image to the Storage of the VMWare
  • Display – Auto

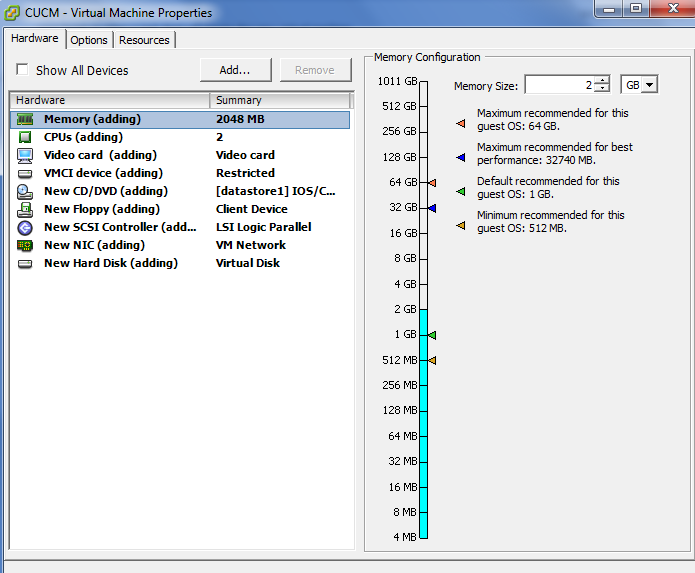

It end looking like this

8

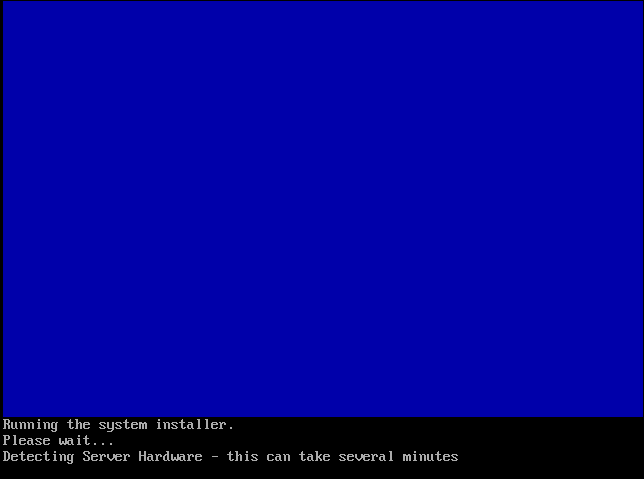

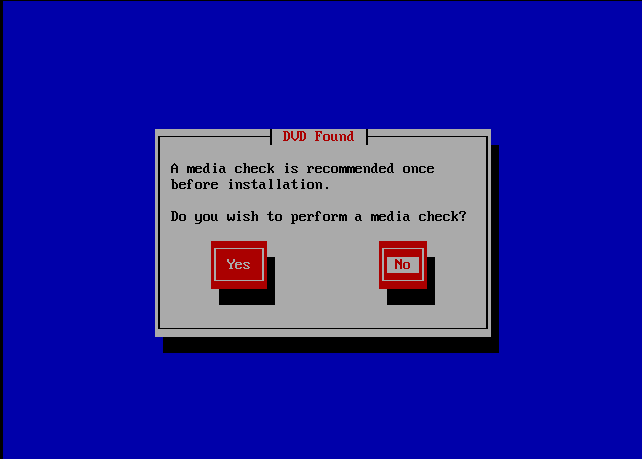

Now Power the Machine and then it ask you to check the Image on the Cd just press No

9

10

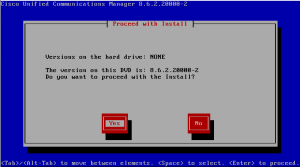

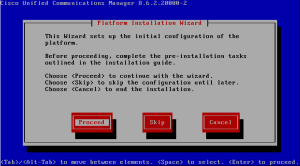

After that it will verify the version of the CUCM

12

13

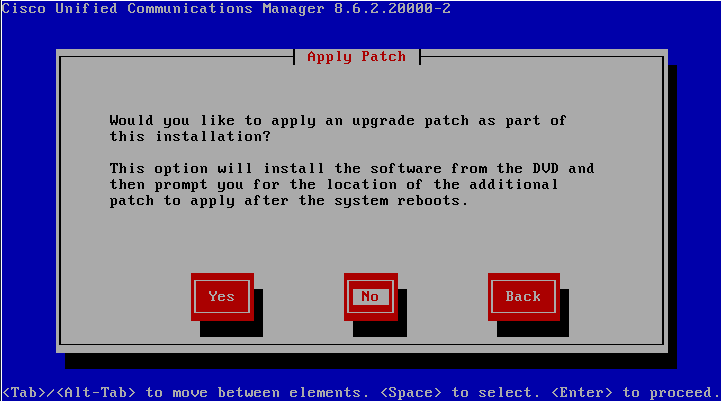

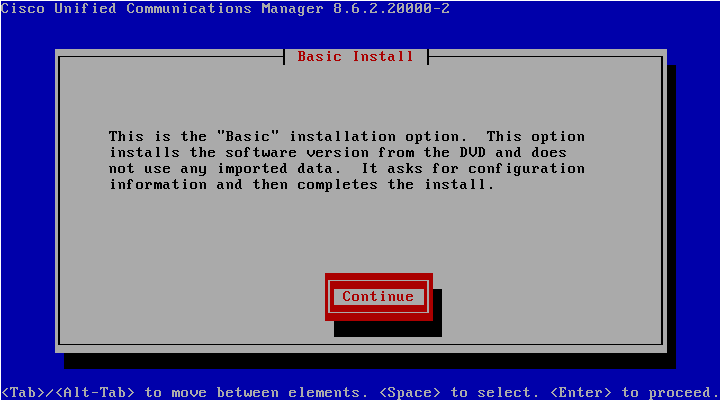

Since it’s a New Installation that mean there is no System to apply the patch to so press No

14

15

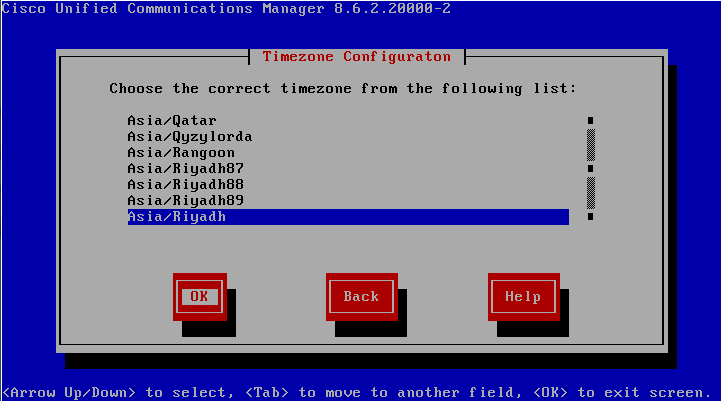

Then Choose the Location you are in

15-a

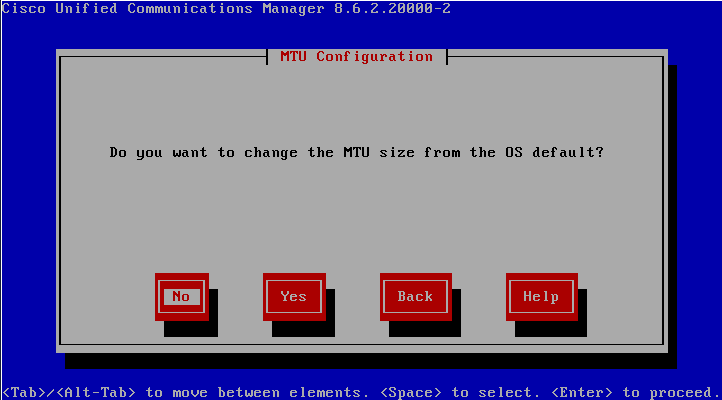

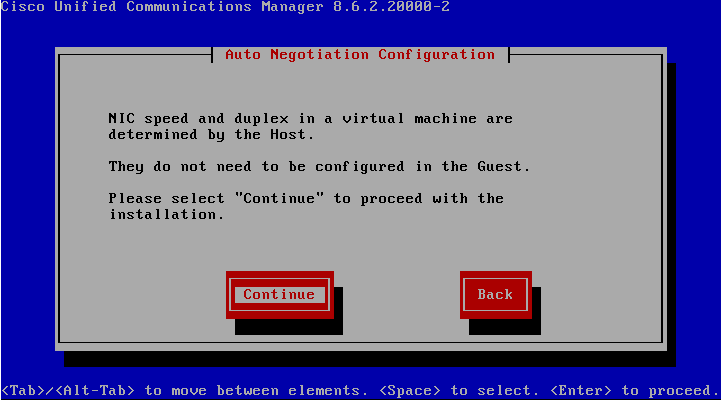

Let the NIC Speed and Duplex determined by the Virtual Machine in case you need to change it in the future

16

17

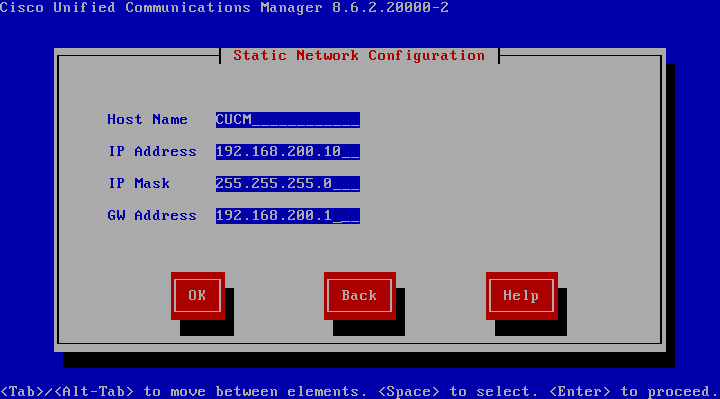

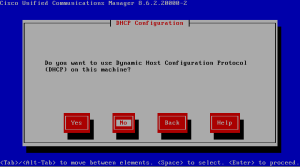

The Most important Part is the DHCP so be careful

18

19

We didnt choose DNS since it’s a lab only in most of the installation i attend no one using it except in the biggest scenario

20

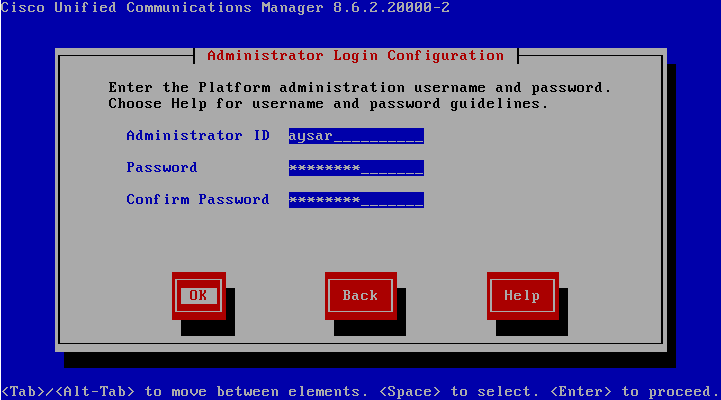

Now Enter the Administrator Username and a Password

21

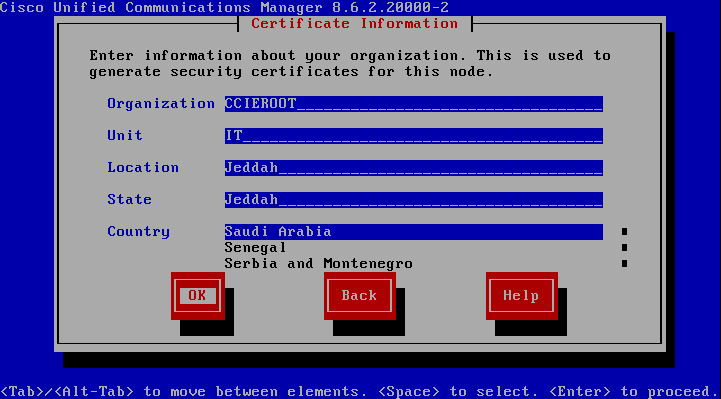

Enter the Company Name and City

22

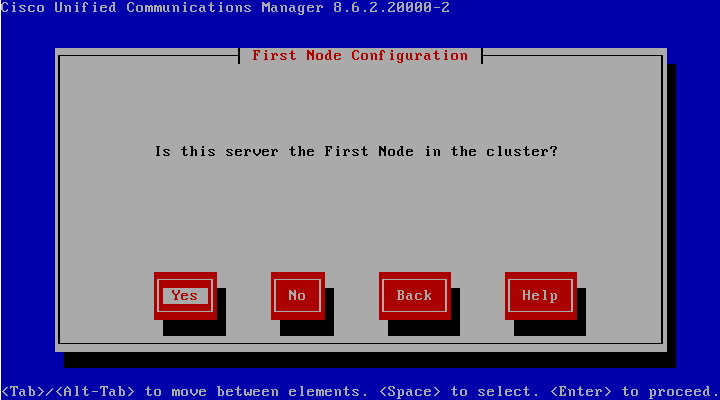

in case this was not the first server you would press no and enter the cluster configuration which is another blog in the future but for now we would press Yes

23

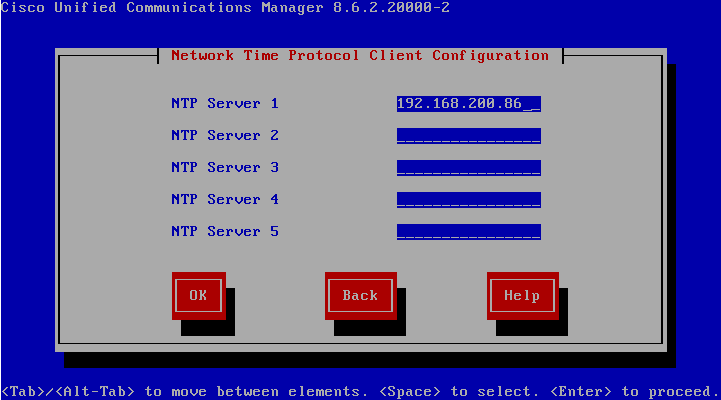

Enter here our NTP Server which is our Router IP also it’s my Voice Gateway

24

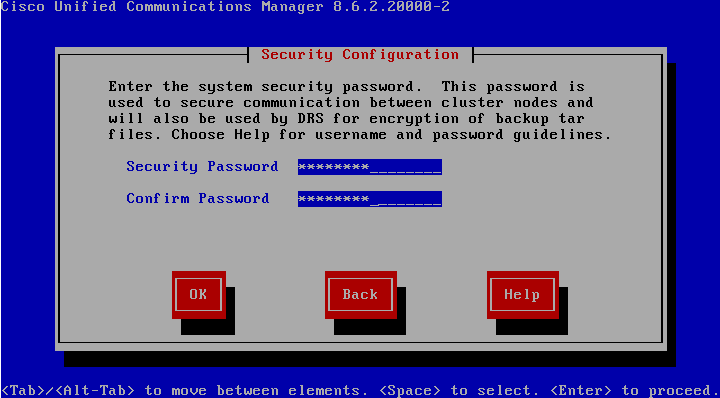

This Part is useful later in case i add a subscriber this is the password that I’m going to use

25

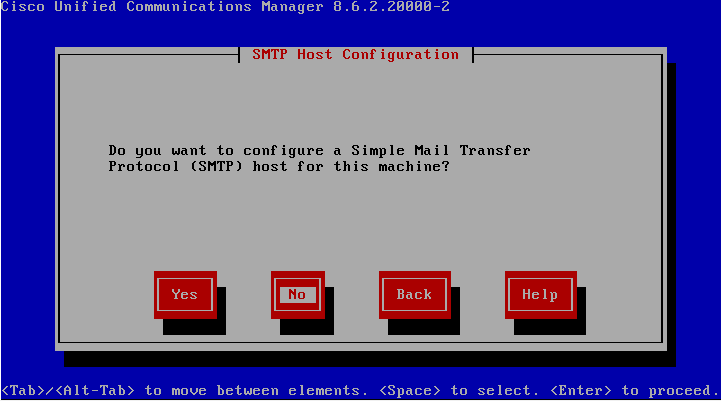

Im not using SMTP here so i press No

26

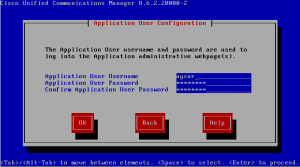

Now Enter the user name and password for the Application Administrator

27

Last Step press the most beautiful Button to complete your mission

28

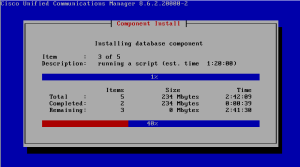

Like that it start the configuration go and take a cub of Cappuccino it will take Hours

Z

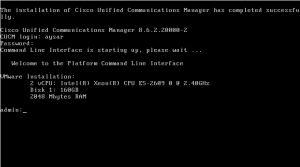

And Done

ZZ

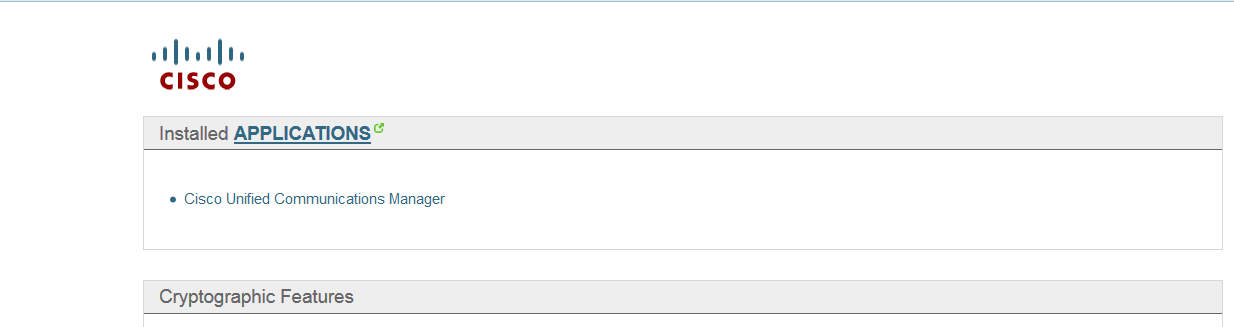

just take the Same ip address you used and past it in the Firefox or whatever web browser you are using and login

1

2

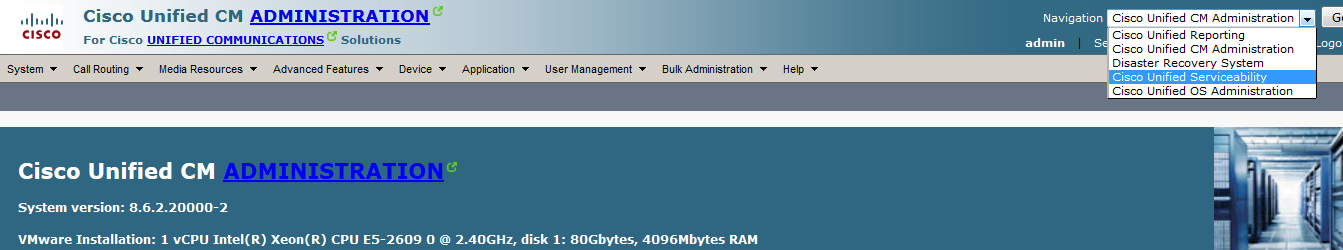

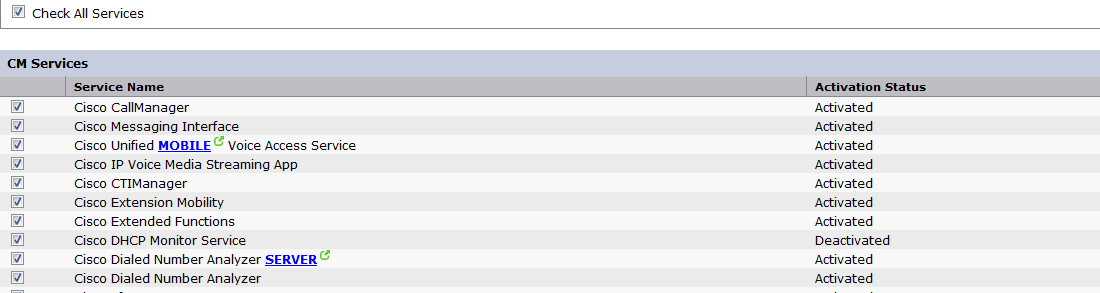

Then from the Drop Down on the Right Corner Choose Cisco Unified Serviceability and press GO so you can be able to Activate all the Service on the CUCM

3
4
5
and Like That your CUCM 8.6 is Ready to be Configure
