Troubleshooting, WLC

Flexconnect Issue in AIR-AP1852E

I am working in a new project were the vendor installed over 10 Access point model AIR-AP1852E on a WLC5508 with Software Version 8.2.100.0
but i can’t configure those AP in Flexconnect Mode.
Cisco documentation Confirm that the available modes are “Centralized local”, “Standalone”, “Sniffer”, “Cisco FlexConnect”, “Monitor”, “OfficeExtent” and “Mesh”.

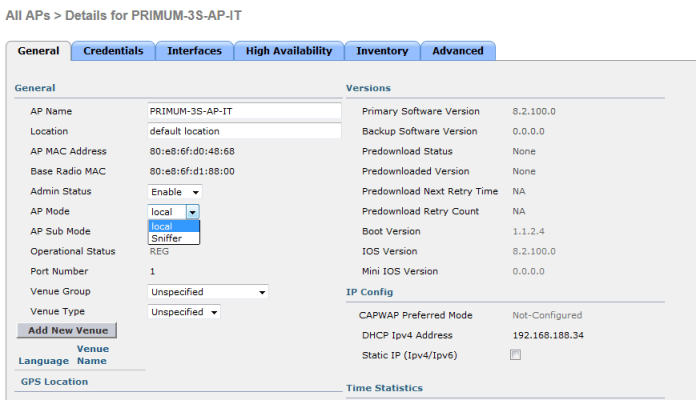

but it only show you the “Local” & “Sniffer” so i will guide you how to fix it
1

so i login to Cisco web site and downloaded the Newer image 8.2.130.0 and Save it to file
2
unless you have a service contract you will not be able to download it
then Login to WLC3
now to upload to the WLC
go to Commands – Download File and Fill the Detail of your TFTP and WLC File Name and then press the Download Button4
you can see in your TFTP it Start to upload5

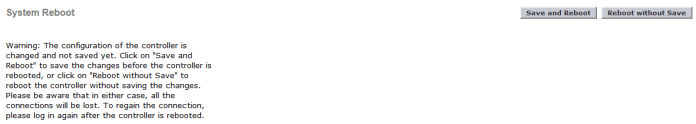

After it finish the Upload it will ask you to Reboot6
I Choose Save and Reboot7

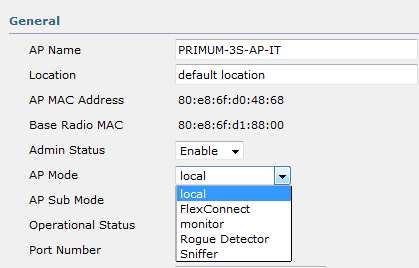

Now you see it change and show all Mode 8
Now go to Flex Connect and Check the Box of VLAN Support
and put the Native Vlan ID in your Branch – Apply
Then Press Button Vlan Mappings9
Then Configure your SSID with the Proper VLANand
Note. even if you are Having this VLAN in another Site it doesn’t matter as long your Access Point is Flexconnect then it will take the branch IP Addressing  10

and Finally as you see i took my branch IP Address
11

;D
