Conference

Video Conference

This is the Cisco IP Phone Biggest Feature of all

Video Conference is one of the Major thing in Business were Some Employee reside in another City and you can save time and Money with Video Conference and for Some Business an MCU is not an Option.

The Best thing for it to work You don’t need TelePresence or Meeting Server, All what you need is a PVDM3 Modules weather it  PVDM 3-128 or PVDM 3-265 in your Router and Configure the Conference in the IOS Similar like you do the Normal Conference i already Explain it in an Earlier Blog

I will be configuring Video Conferencing for Cisco 8941 IP Phone and 2 of 9971 IP Phones.

So Let Start Configure the IOS

first i Set the DSP reservation for voice related services Integer is a percentage which is 60 in this Example, That Leave me with 40% to video resources

1

Then Configure the Video Conference Profile

Its Important to  Define the conference-participants parameters and Maximum Sessions so I Define how Many Parties Per Conference and I define Also the maximum sessions

3

Now the SCCP Configuration Part

i Define my Call Manager

2

and here i Associate the Video Conference Profile to the SCCP Group

4

Now the CUCM Part

Go to the Media Resource – Conference Bridge – Add New

5

Then  Go to Media Resource – Media Resource Group – Add new and Select the Video Conference Resource that you Just Configure

6

Then  Go to Media Resource – Media Resource Group List – Add New and Select the Media Resource group

11

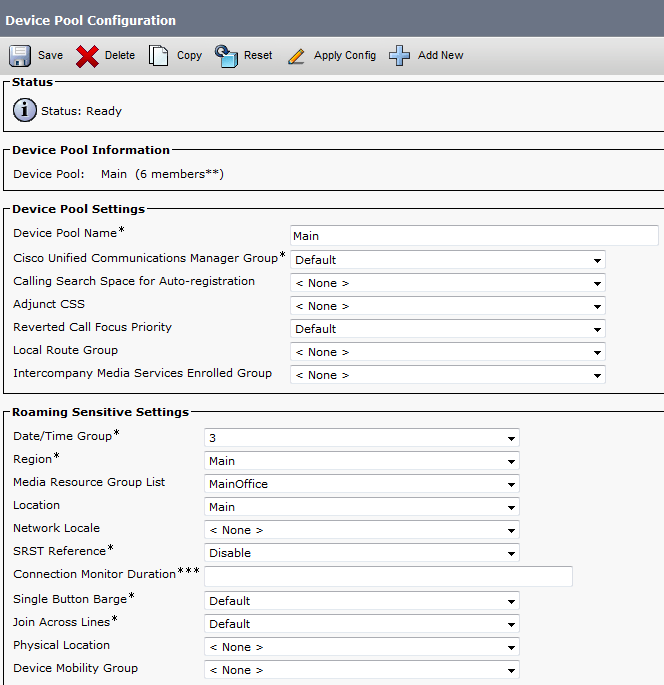

Finally Assign the Media Resources Group List to the Device Pool

12

Now make a Call to from Phone A (7156) to Phone B (4119) then i Add by Using the Conference Button https://i2.wp.com/www.cisco.com/c/dam/en/us/td/i/200001-300000/250001-260000/255001-256000/255303.eps/_jcr_content/renditions/255303.jpg and Add Phone C (2131) and Press the Softkey Conference and Just Like that you have a Video Conference

you can watch the Video in this Link
or you can see it in the video below

Note. Cisco release a Feature Deprecation Announcement for Video Conferencing and Transcoding Using PVDM3 on ISR G2 Product Bulletin Feature Deprecation Announcement for Video Conferencing and Transcoding Using PVDM3 on ISR G2 Product Bulletin were saying “This feature will be disabled with Cisco IOS Software Release 15.5(3)M” so in case you want to use it Youre going to have to roll back to an older release.

Standard
Conference

Ad Hoc Conferencing

Conference Cant get Any Easier  ;D

I already explain in earlier blog the other Conference Feature Meet-me and in my Believe Ad-Hoc is the Advanced feature of Conferencing

in Ad-Hoc the Initiator of the Conference which is the Controller would have the  ability to view the List of the Other Parties, to Remove Some of the Parties. Also you can provide this  Feature to the other parties to have same capabilities of the controller

First just like Meet-Me you need to have conference resources available on you router before you can use any conference features i already explain how to configure a Conference Bridge in earlier Blog Media Resource Group

no other configuration needed

so to start conference first i will go to My Cisco 8941 phone and Make call for the First Parties which in my example is extension 7188

Untitled

After the first parties answer then I Press the Conference Button

Conference Button.png

on the 8941 and Call Second Parties extension number 9059

IMG_6697

IMG_6702

After 9059 answer then press Conference Softkeys to Add him to  the Conference

IMG_6705

And it’s now everyone join the  Conference and you can add as many user that your Conference Resource can support

You can view the List of Parties by press View Detail Softkey

IMG_6707

Detail

Also you can select a user and remove him from the Conference


its a really great feature and user will not have to go through System Administrator to ask for a Number to call like Meet-me Conference were you need it

to adjust your conference to protect your self from toll fraud you can configure the call to be terminated once the controller drop the call

Go to System – Service Parameter – Select the Server and Choose the service (Cisco CallManager ) then go to Clusterwide Parameters (Feature – Conference)

Drop Ad Hoc Conference : When Conference Controller Leaves

10

Also if i want to other Parties non-Controller to View List of Conference parties and Remove other Parties i will go to System – Service Parameter – Select the Server and Choose the service (Cisco CallManager ) then go to Clusterwide Parameters (Feature – Conference)

Advanced Ad Hoc Conference Enabled : True

20

Also you can increase number of Parties to join conference, the default value for this Clusterwide Service Parameter is 4.

;D
