Device Package

Update Device Package in CUCM

Ever face a Problem with Adding a new Model IP Phone to your Environment such as 8845, 8865 ?
will Luckily Cisco always care about her customer and support them with upgrading their device package always
it’s available in the latest Device Package cmterm-devicepack8.6.2.26169-1.cop.sgn Which can be downloaded from Cisco Software download!mmd

I will show you the steps to Upgrade your Device Package

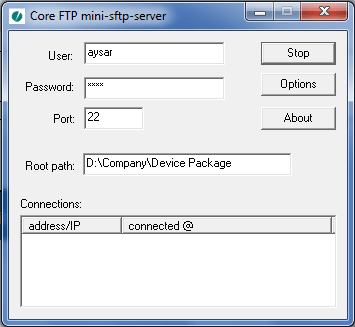

First Turn on your TFTP were you have your Device Package
Then Login to your CUCM OS Admin Page

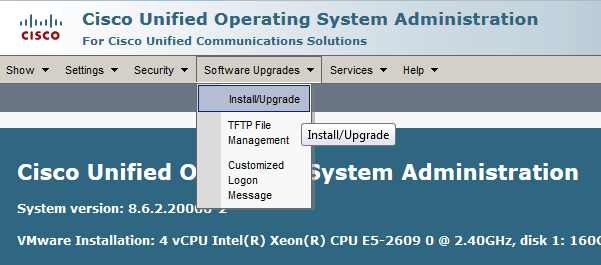

The Choose Software upgrades – Install/Upgrade
Then Fill the Detail of the SFTP in CUCM page

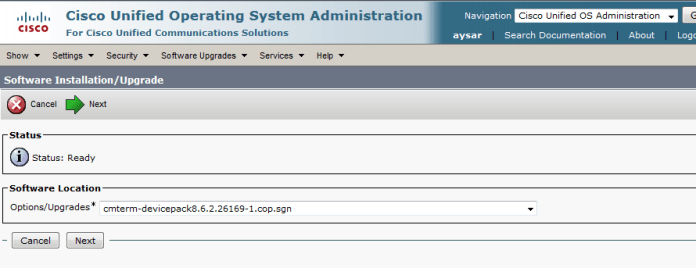

Press Next and choose the Device Package you want

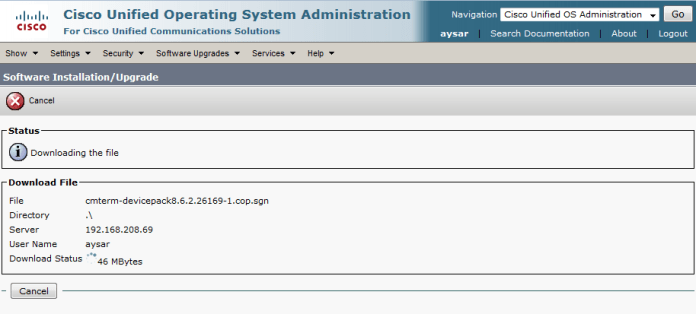

Press Next and the Downloading of the Device package Start5
After the Downloading is done it will ask to Install it

Now After it Finish you need to Restart the TFTP Service
go to Cisco unified Serviceability – Tools – Control Center  Feature Services and Restart the TFTP Service
in case of a big cluster you  need to add the Device Package to each server and Restart them starting by the Publisher
advice always do this after Duty  ;D

and Finally will find that you can add your new IP Phone Model 8845, 8865
