SIP Integratinon Cisco Unity Connection with CUCM

In an Earlier tutorial I explain how to integrate CUC with CUCM using SCCP Protocol
https://ccieroot.com/2015/07/11/sccp-integratinon-cisco-unity-connection-with-cucm/

Let’s move to the SIP

First Create Trunk to CUC
Device – Trunk

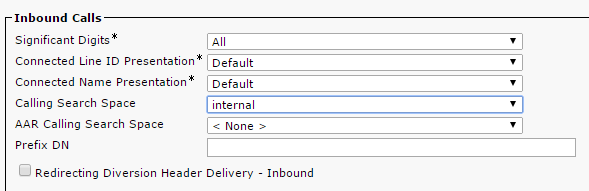

Configure the DevicePool, Location Incoming CSS,IP Address, SIP Trunk Security Profile & SIP Profile
1

2

3

4

Note: make sure the SIP Trunk Security Profile has the following settings are selected;

  • Accept Out-of-Dialog REFER
  • Accept unsolicited notification
  • Accept replaces header

Second Create a Route Pattern toward the Voice Mail Number which is 5555 in our case
Call Routing – Route/Hunt – Route Pattern
Choose a partition and the SIP Trunk that you just create

5

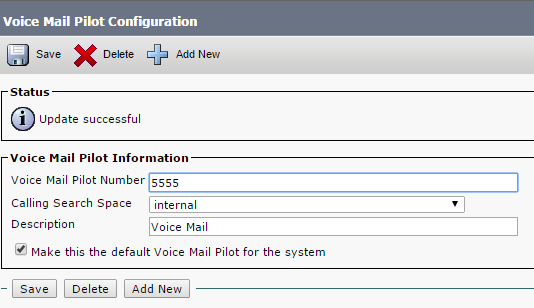

Next Step is to configure a Voice Mail Pilot and Voice Mail Profile
6

7

Last step is to configure MWI in service Parameter
System – Service Parameter – Choose the Call Manager Server – Call Manager
and Enable the Service Multiple Tenant MWI Modes
8
Now We Finish the CUCM Part let’s Move to the CUC
First Add the CUCM AXL Server which usable to import the Users from CUCM
13-A

2

Then From Right Corner we chose to add Port Group
here you Decide which protocol you are using weather its SIP or SCCP
in this scenario i choose the SIP
Notice there is no option for Prefix Name like SCCP or MWI Cause SIP use SIP-Notify not MWI Dn

4

5

Then Configure The Ports
7

From Right Side Corner we can check the telephony to make sure no problem exist in the System

8
now time to import the users

The only last thing is to import user from CUCM
go to Users – Import User
Select Import All or By Choose which user you want to have a Voice Mail
all 1

all 2

all 3
Change their Active Schedule to all hour is a better choice and Change their Password
all 4

all 5
and now you can test your Calls to the VM Pilot Number or press the envelop Button

Standard
CUC

SCCP Integratinon Cisco Unity Connection with CUCM

Long Time No See and Finally im back ;D

In this tutorial, i want to give you an overview what has to be done and configured to integrate Cisco Unity Connection 9 with CUCM 9.
Unity Connection can be integrated with CUCM using 2 methods, SCCP or SIP, the differences and similarities are detailed below:

SIP Integration

  • Requires a SIP Trunk pointing to Unity Connection
  • Requires a route pattern to send calls to the SIP trunk
  • Does not require MWI DNs, uses SIP NOTIFY messages

SCCP Integration

  • Requires SCCP Ports, along with Line Group, Hunt List & Hunt Pilot
  • Dedicated DNs for MWI on/off

Both integrations require a VM Pilot and a VM Profile.

i will start by the SCCP in this tutorial

at an earlier tutorial i show you how to configure CUCM to make calls
https://ccieroot.com/2014/11/08/cisco-unified-communications-manager-cucm-initial-setup/

After that we start the integration
First we create the Voice Mail Port
Advanced Featured – Voice Mail – Cisco Voice Mail Port Wizard
Give it a name
1
Then Choose the number of the Ports
2
Now Choose Description and Device Pool And CSS and the most important the Security Mode
3
Now Choose the Beginning Directory Number and Which Partition and CSS it will Contain
4
After this add it to a Hunt Group which contain the Voice Mail Port
5

6
Verification show in the next screen
7
Now it show the Final Result
8
Now i need to Add it to a Hunt List and Configure a Hunt Pilot Number in Our Case its 5555
9

10

Now Configure my MWI (Message Waiting Indicator) On & Off
11

12
last two thing is the VOice Mail Pilot and Voice Mail Porfile
Voice Mail Pilot

Voice Mail Profile
Now We Finish the CUCM Part let’s Move to the CUC
First Add the CUCM AXL Server which usable to import the Users from CUCM
13-A

13-B

Then From Right Corner we chose to add Port Group
here you Decide which protocol you are using weather SCCP or SIP
in this scenario i choose the SCCP
be careful about the Device Name Prefix it should be the same you choose in CUCM Part which in our case is (CiscoUM1-VI) you can find it under Voice Mail Ports dont put the number next to the name
and Add the CUCM ip address and MWI
1

13
Second We Add Port to it
we choose the same number that you choose in CUCM part which is 2
14

Done
The only last thing is to import user from CUCM
go to Users – Import User
Select Import All or By Choose which user you want to have a Voice Mail
all 1

all 2

all 3
Change their Active Schedule to all hour is a better choice and Change their Password
all 4

all 5
and now you can test your Calls to the VM Pilot Number or press the envelop Button
